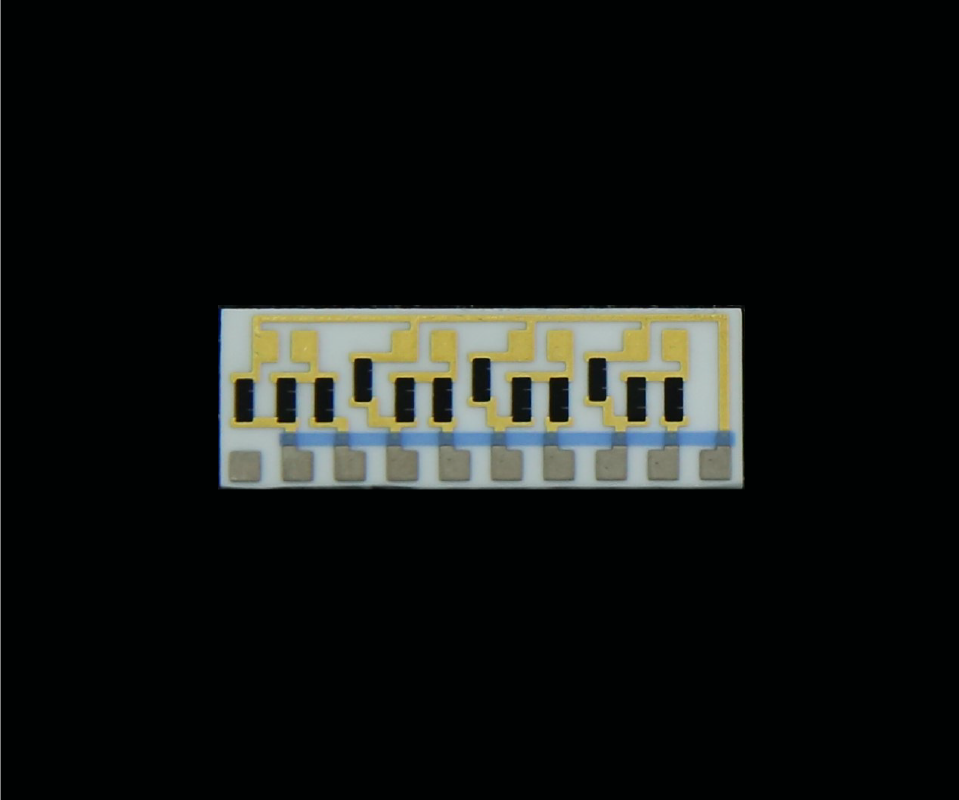

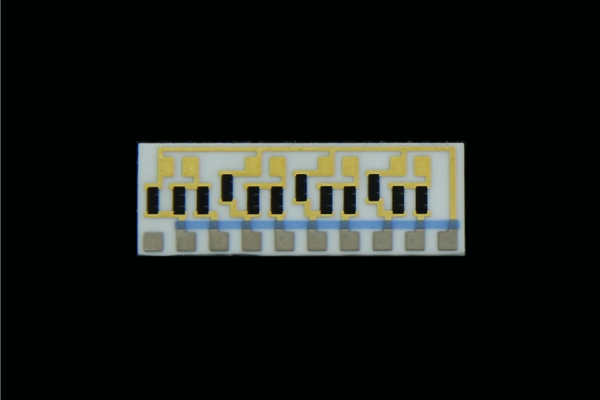

At KHMDL, our precision-engineered Resistor Networks are designed to deliver high reliability and stability across a wide range of applications, including aerospace, defense, and automotive electronics. These networks offer superior performance in compact configurations, enabling efficient space utilization and simplified circuit design. With customizable resistance values and tolerance levels, KHMDL’s Resistor Networks are tailored to meet the most demanding specifications for mission-critical environments.
Specifications
Package and Types
Packages: SIL

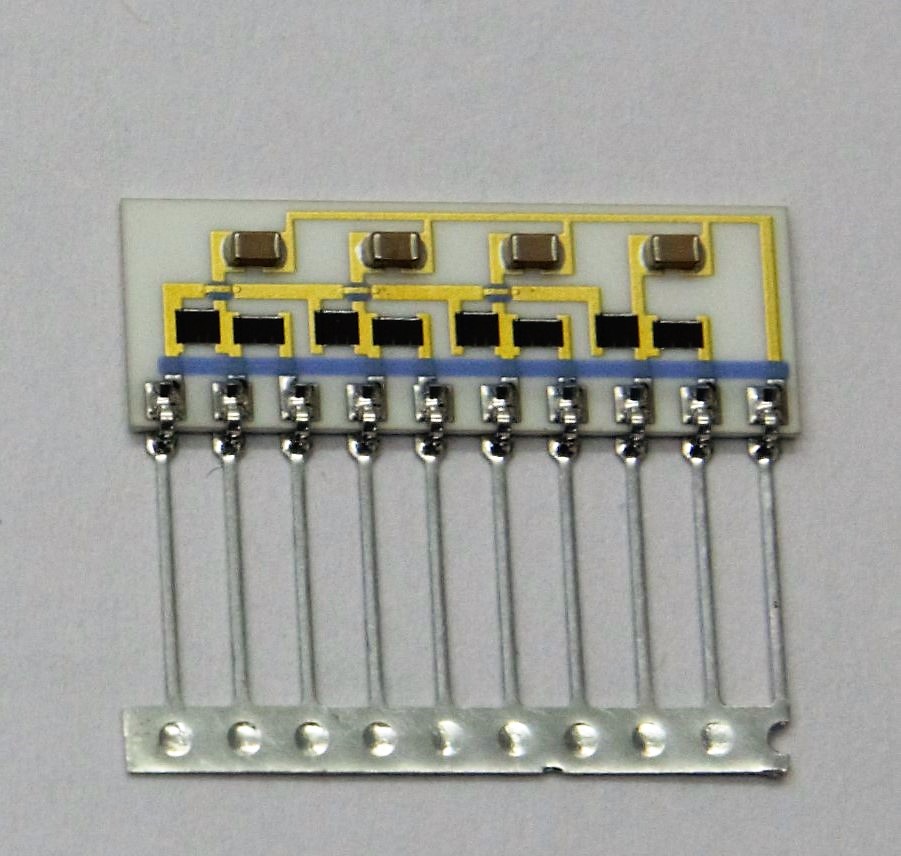

Types of Resistor Networks: Resistor And Resistor – Capacitor Networks
Size / Range
100 Ω To 1M Ω
Specifications
- Tolerances : < 1% For Resistor, 1% For Capacitor
- Electrical Insulation : > 10,000 M Ω
- Power Rating : 120 MW Up To 70°C
- Temperature Range : – -55°C To 125°C
- Temperature Co-Efficient : ±100ppm/ °C
- Mechanical Shock : 100g, 6ms, Half Sine
- Operating Voltage : 50V For Resistor, 25V To 125V For Capacitor
- Mechanical Vibration : 20g, Frequency 10 To 2,000 Hz
- Power De-Rating : 100% Up To 70°C
Standard
MIL-PRF-83401
Modules
- Passive Networks
- Fuel Level Sensor
