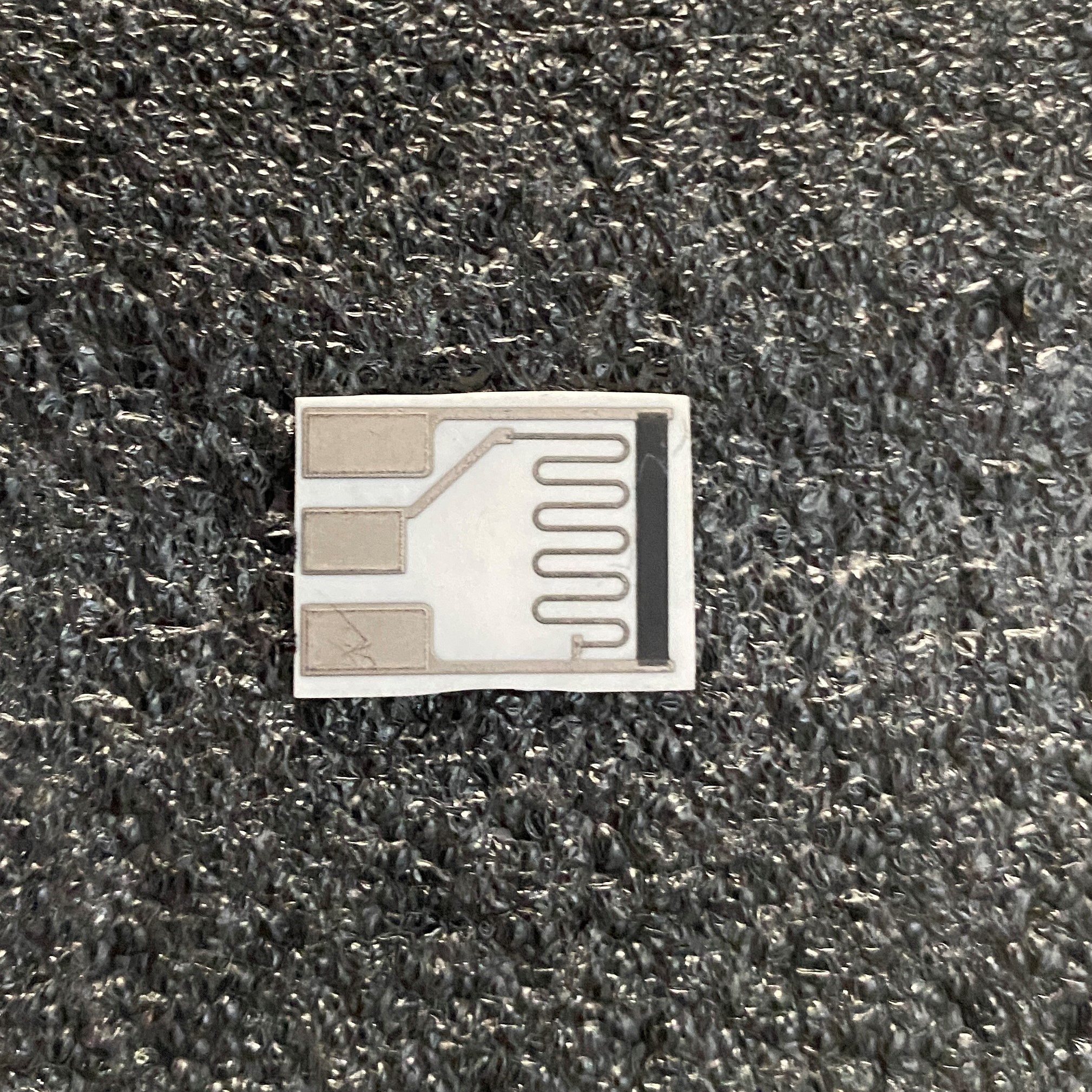

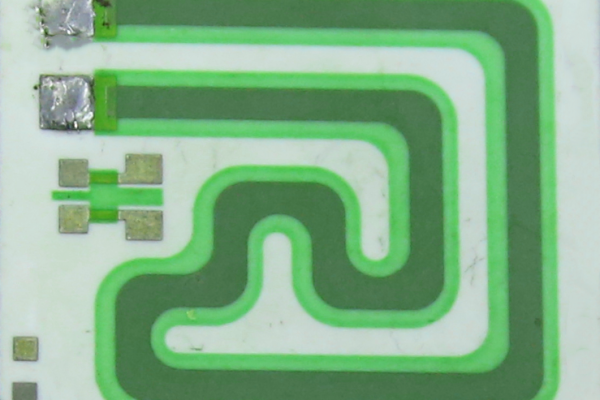

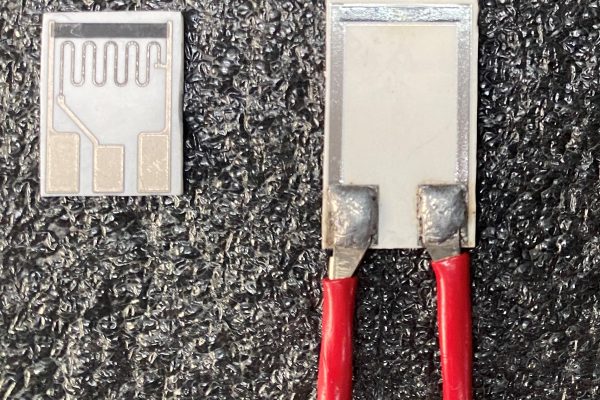

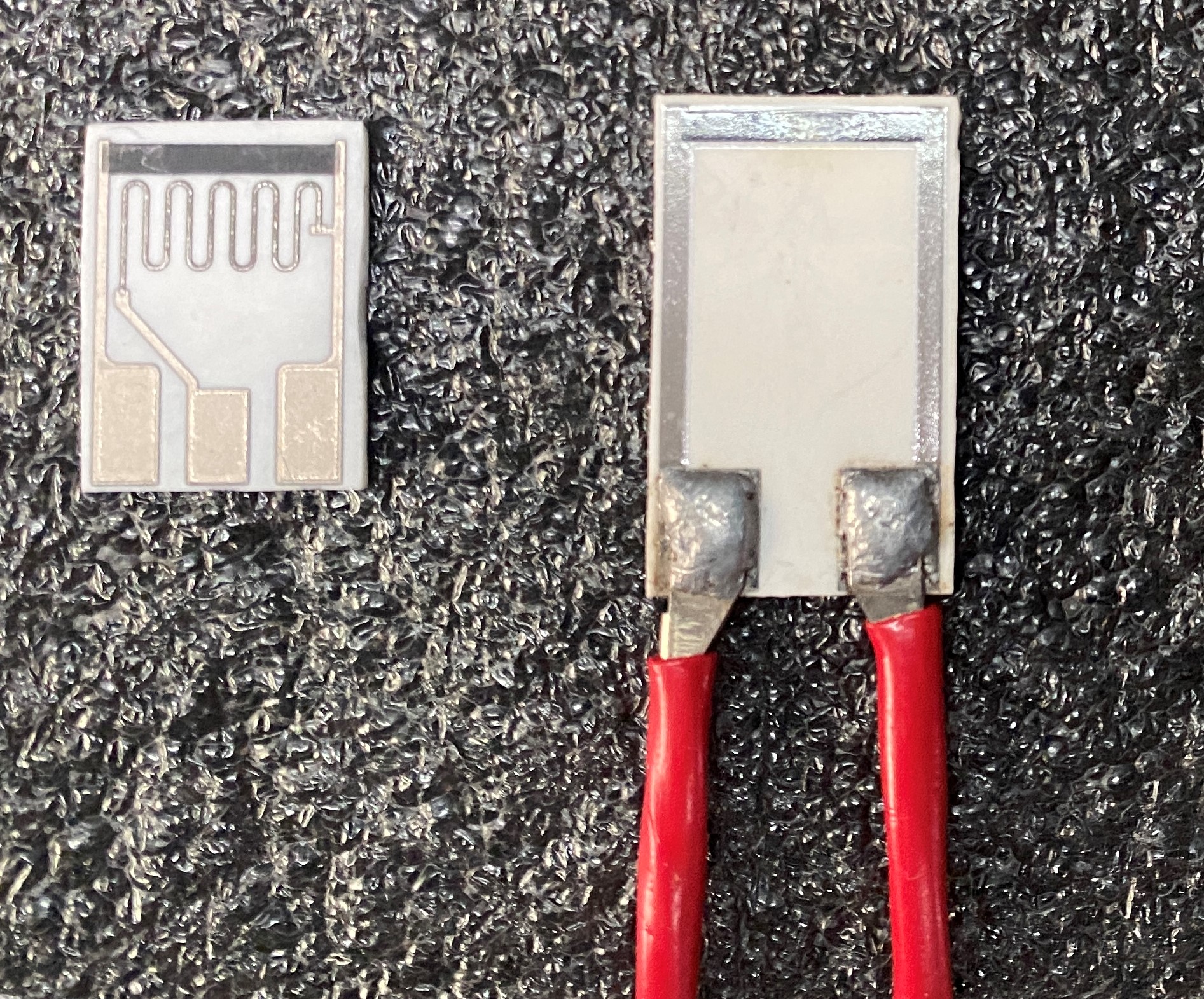

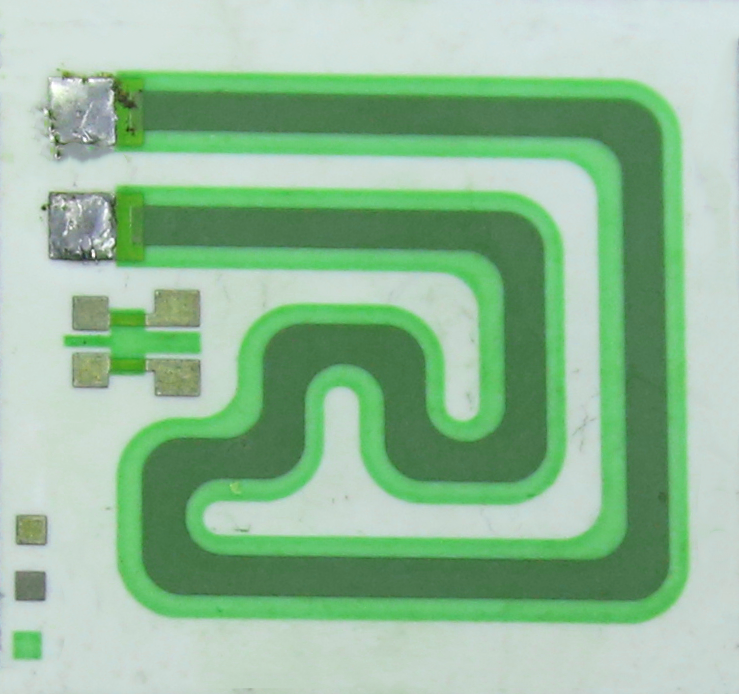

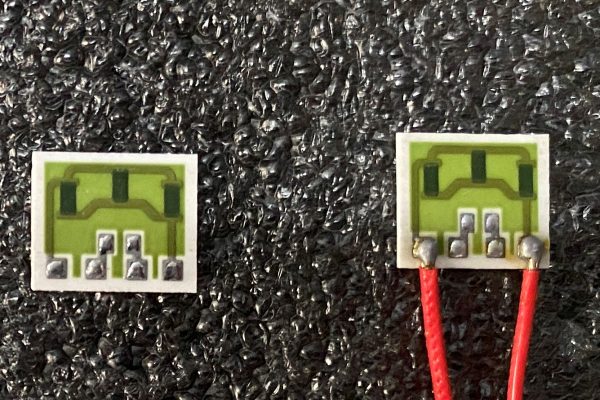

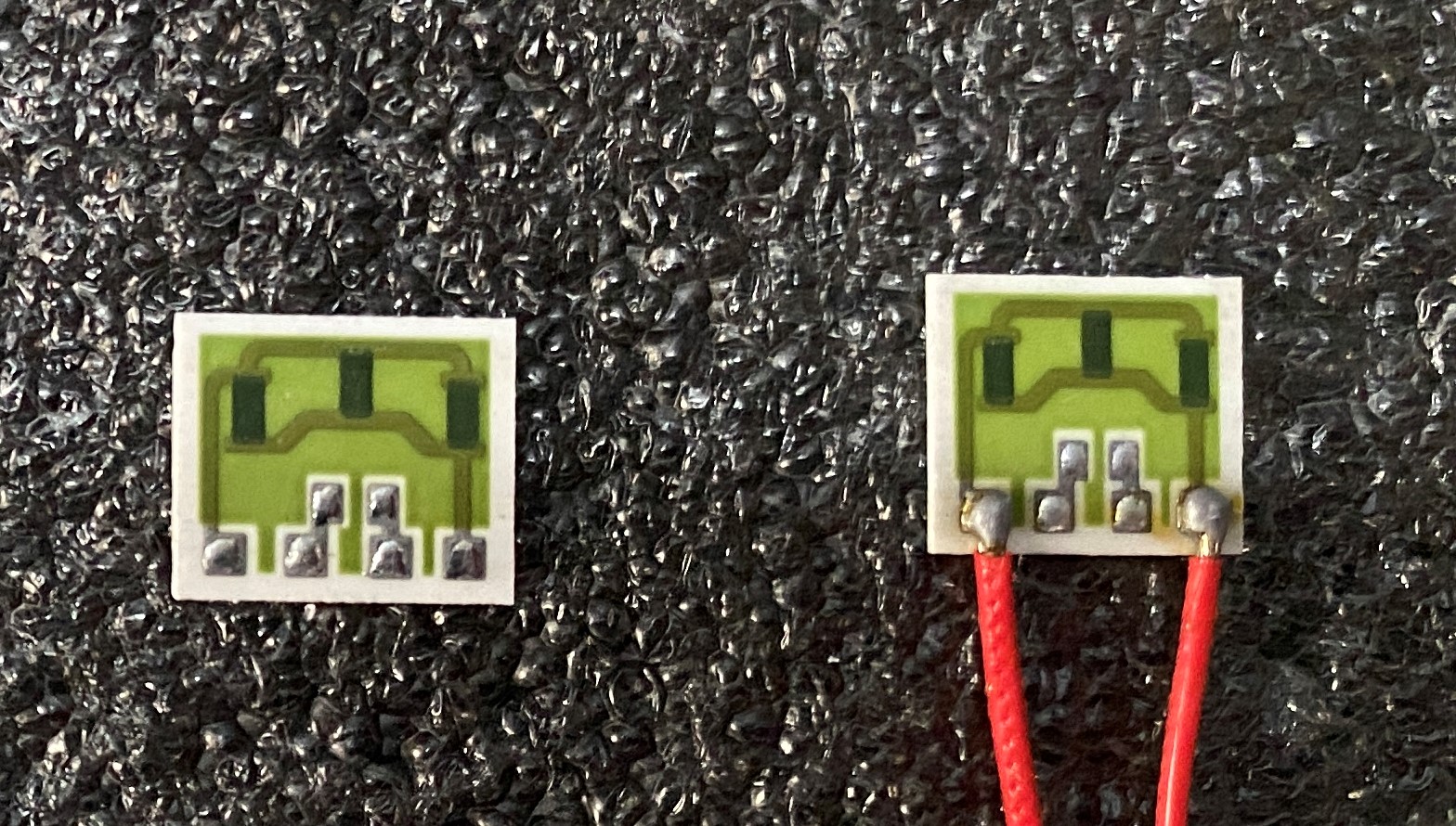

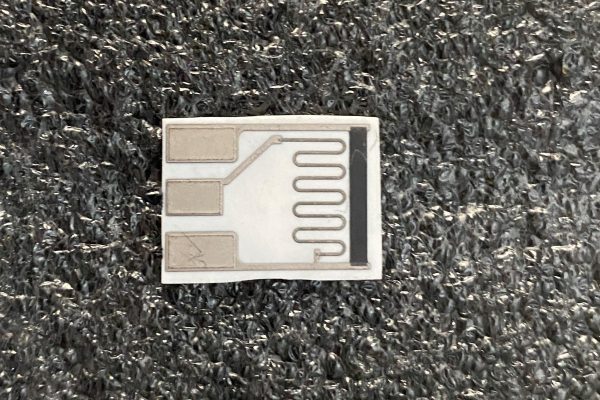

KHMDL’s Thick Film Printed Heaters are engineered for precise thermal control in compact and demanding environments. Utilizing advanced screen printing technology on ceramic or metal substrates, these heaters offer uniform heat distribution, rapid response times, and high reliability. Ideal for aerospace, automotive, medical, and industrial applications, our heaters are designed to withstand harsh conditions while delivering consistent performance. Customizable in shape, size, and power density, they provide flexible solutions for a variety of thermal management needs.
Specifications
Types
1. Rigid – Ceramic (Alumina, AlN), Metal (Steel, Aluminium)
2. Flexible – Polyimide
3. With / Without Printed Temperature Sensor
4. With / Without Pre Termination
Size / Range
Ceramic : Temperature Up To 600 Degrees Centigrade Steel : Temperature Up To 350 Degrees Centigrade Aluminium : Temperature Up To 250 Degrees Centigrade Flexible Heaters : Temperature Up To 200 Degrees Centigrade Size : 3mm X 5mm To 100mm X 200mm
Sheet Resistivity :
Ceramic / Steel : 50mΩ To 10KΩ
Aluminium: 2Ω And 10Ω
Flexible Heaters: 14mΩ To 30mΩ
Specifications
- Power: As Per Customer Requirement
- Dielectric Strength: > 2.5 KV
- Voltage: AC & DC
- Temperature Sensor: ± 2%
- Resistance Accuracy: ± 10%
- Life: > 10,000 Cycles
