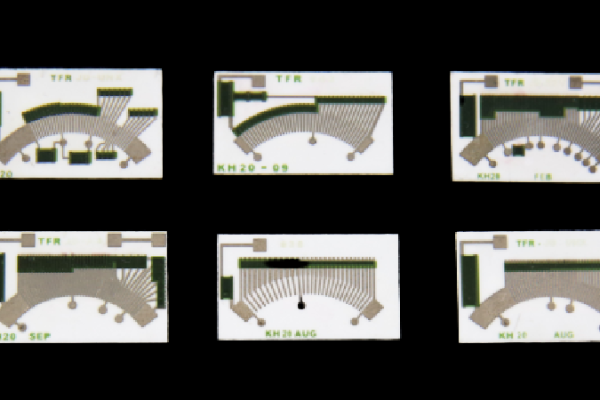

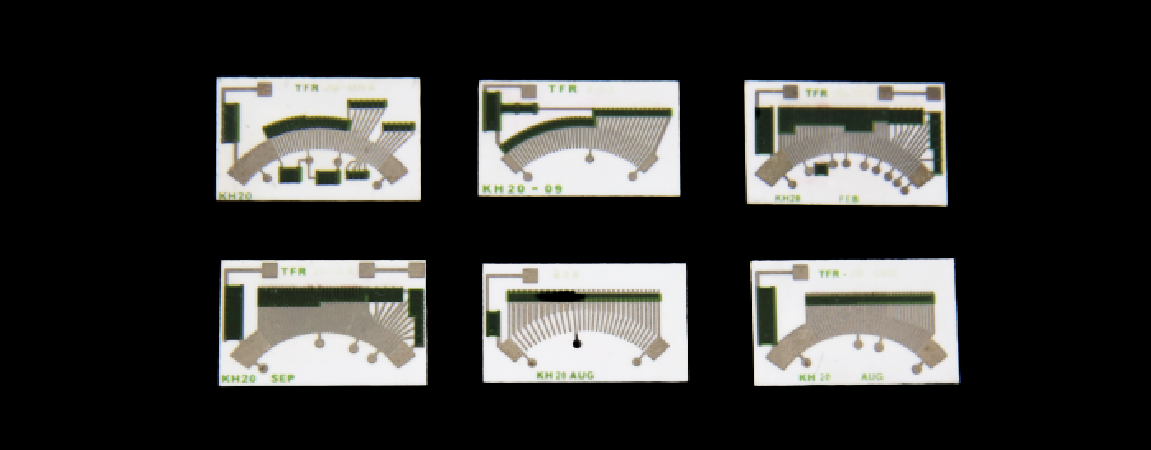

KHMDL’s thick film resistors are engineered for precision and durability in harsh automotive environments. Used in fuel level sensing systems, these resistors provide accurate, stable resistance values even under varying temperature and chemical exposure.

Key Features:

• High resistance stability across wide temperature ranges

• Excellent chemical resistance to fuel and additives

• Compact design suitable for integrated sensor modules

• Proven reliability in automotive-grade applications

Applications:

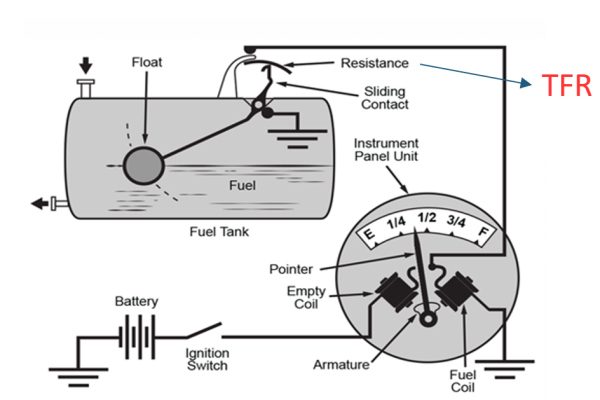

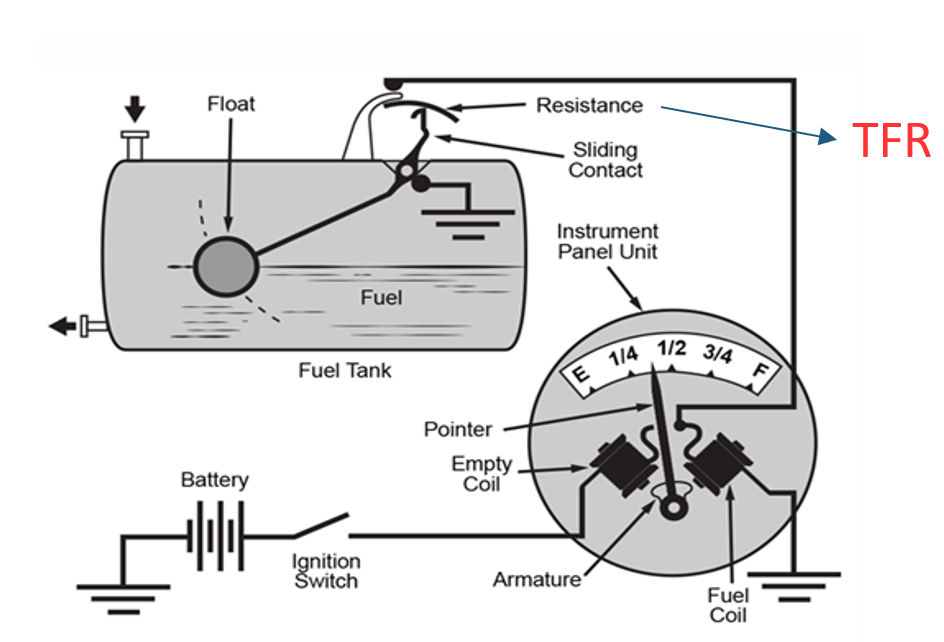

Fuel level sensors, float-type sensors, and electronic fuel monitoring systems in two-wheelers, passenger vehicles, and commercial fleets.

Types

As Per Customer Requirement

Size / Range

Resistance : 0 To 280Ω

Specifications

• Resistance Accuracy : > 99.5 %, Laser Trimmed Number Of Resistors : 10 To 33
• Substrate Thickness : 0.635mm, 0.800mm And 1.000mm
• Line Width: 8 Mil (0.2mm) Min
• Fluid Compatibility : Petrol / Diesel
• Line Spacing: 8 Mil (0.2mm) Min
• Life Cycle Test : Dry Run Test: > 5,00,000 Cycles Wet Run Test: > 20,00,000 Cycles
• Substrate Used : 96% Alumina (Al2O3)

Standard

Automotive / Mil Std 883
