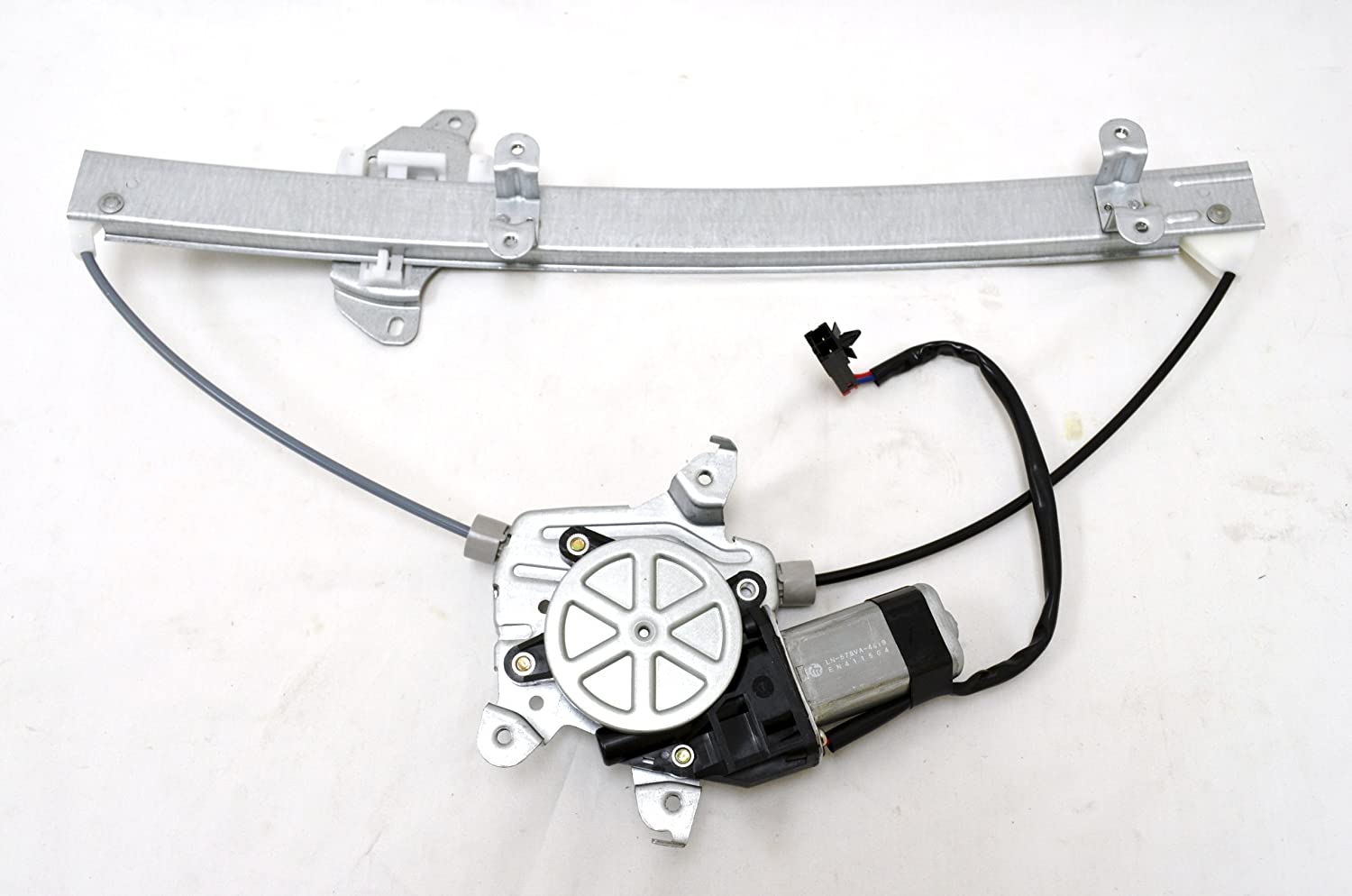

KHMDL’s Window Regulator Electronics offer precise motor control and smooth operation for automotive window systems. Designed for durability and efficiency, these modules ensure reliable performance under varied environmental conditions. Our solutions are compact, customizable, and compliant with global automotive standards.
Specifications
Types
Electronics For Intelligent Door Window Regulator With Anti Pinch
Size / Range
Dimension : 75 Mm X 36 Mm X 20 Mm (Customizable As Per OEM Specification)
Specifications
Electrical Characteristics:
Operating Voltage Range : 10 V To 15 V
Idle Current : < 0.5 MA Operating Mode Current (No Load) : < 7 MA
Motor Current Rating (Max) : 20Amps
Operating Environment:
Operating Temperature: -30 °C To +85° C
Storage Temperature: 40 °C To +90° C
Relative Humidity: 95 %
Wake-Up Time: < 1 PSec

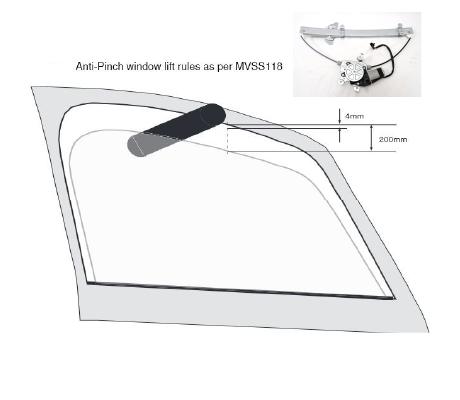

Standards
FMVSS 118
